RJ Modular Jack & Plug

RJ Modular Jack & Plug

Meet or exceeds FCC part 68 Rules and regulations
Mates with plugs according to IEC60603-7
10/100/1000 Base-T magnetics
Integrated LED
Single port and multi ports available
Meet 1000 VCAC RMS 60Hz 1 min contact to contact
All housing are UL 94v-0 flame retardant polyester

Modular Jack with Transformer 8949 Series

8949-BM881-xxSC1xB07A-1

Part No.

8949-BM881-xxSC1xB07A-1

Desc.

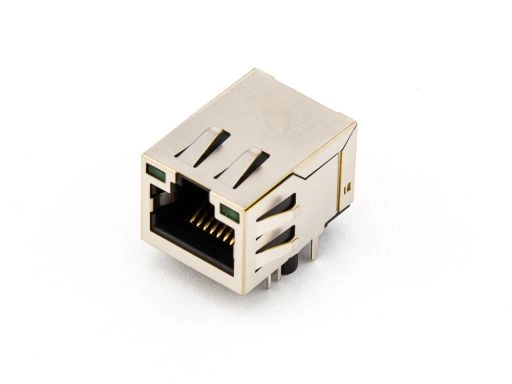

Shield Modular Jack Side Entry 8P8C with LED L:21.6mm W:16mm H:13.6mm with magnetic

8949E-M881C50SC1BB06A

Part No.

8949E-M881C50SC1BB06A

Desc.

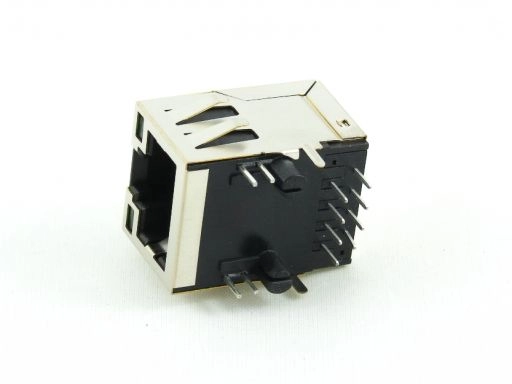

Shield Modular Jack Side Entry 8P8C with LED L:21.5mm W:15.75mm H:13.8mm with magnetic

8949E-M1882CxxSC1xB01A

Part No.

8949E-M1882CxxSC1xB01A

Desc.

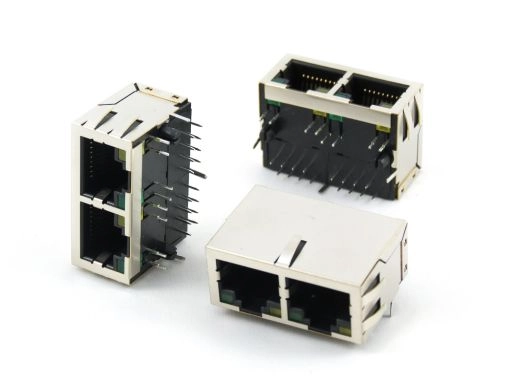

Shield Modular Jack Side Entry 8P8C with LED L:21.35mm H:13.5mm 2Ports
