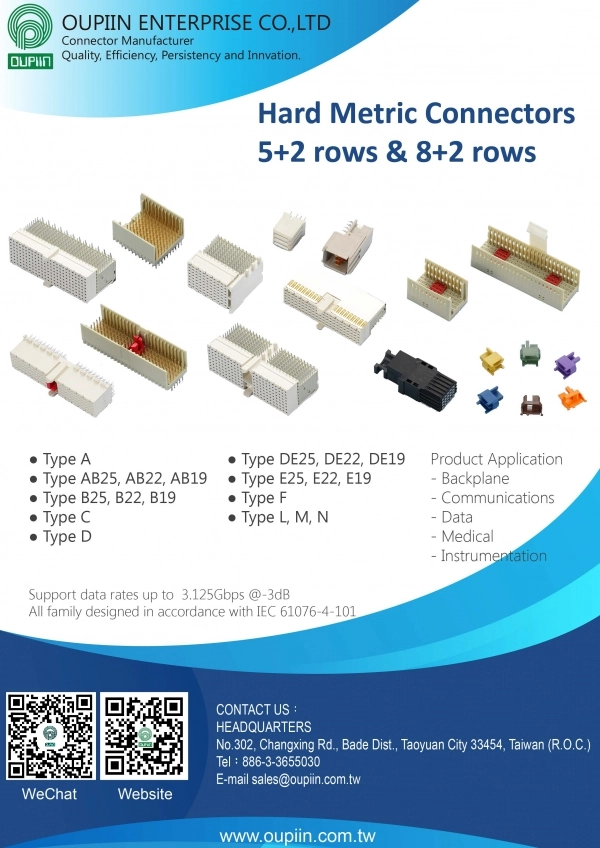

Hard Metric Type A to C
read more

Hard Metric Type A to C

Support data rate up to 3.125Gbps @-3bB
Compliance with IEC 61076-4-101
Offer at Leve I II III performance
Various pin length to provide FMLB options
Codeing Device available

Hard Metric Type A 9111-7 Series

9111-71A

Part No.

9111-71A

Desc.

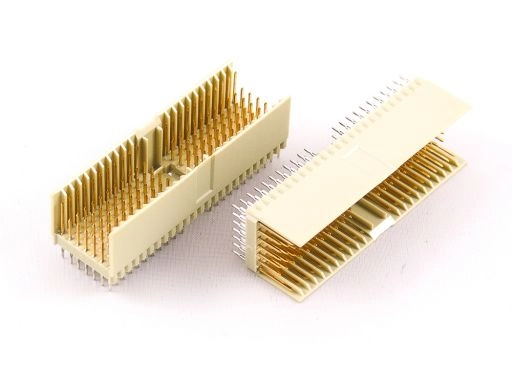

Hard Metric Connector Male Type A

9111-72A

Part No.

9111-72A

Desc.

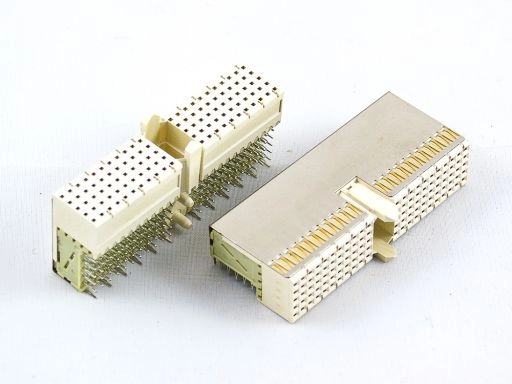

Hard Metric Connector Female R/A Type A

9111-74A

Part No.

9111-74A

Desc.

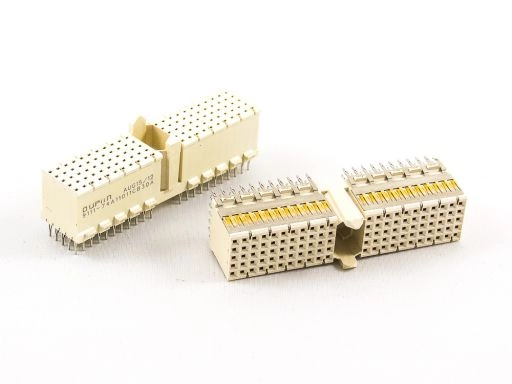

Hard Metric Connector Female Straight Type A
