RJ Modular Jack & Plug

RJ Modular Jack & Plug

Meet or exceeds FCC part 68 Rules and regulations
Mates with plugs according to IEC60603-7
Meet 1000 VCAC RMS 60Hz 1 min contact to contact
Top entry (Vertical) direct mount to PCB board
Shielded jack available with options of grounding
All housing are UL 94v-0 flame retardant polyester
Standard color black, other color available with higher MOQ

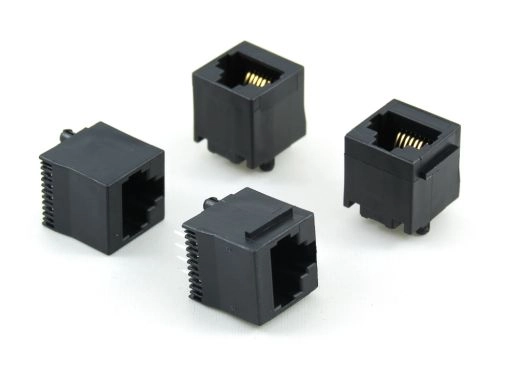

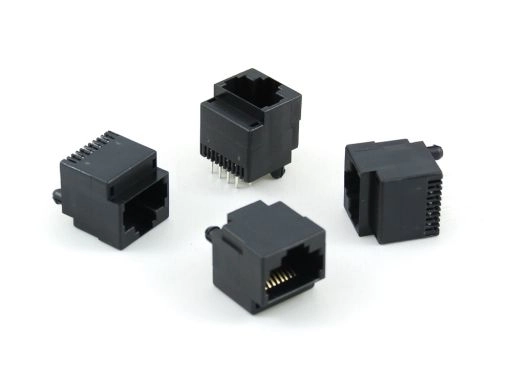

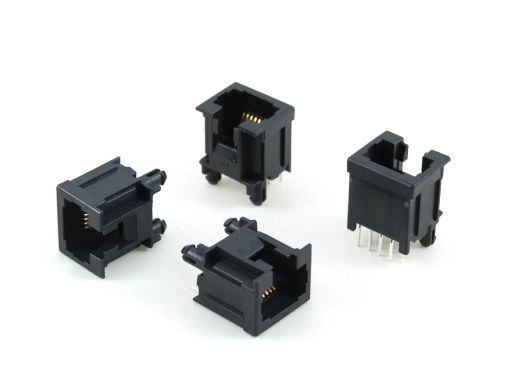

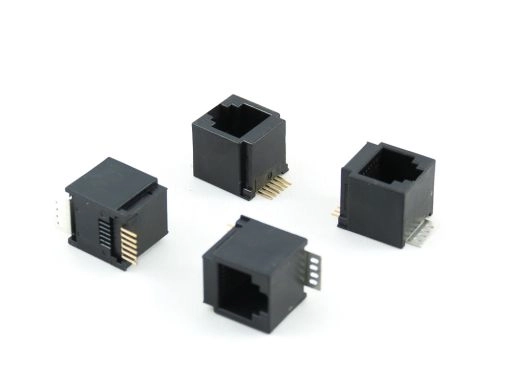

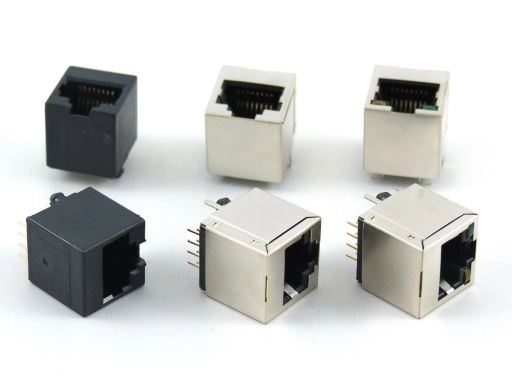

Modular Jack Top Entry 8949 Series

8949-H

Part No.

8949-H

Desc.

Modular Jack Top Entry L:16.5mm W:15.49mm(8/10P) H:16.4mm

8949-H1

Part No.

8949-H1

Desc.

Modular Jack Top Entry With LED L:16.1mm W:15.34mm H:16.2mm

8949-H288-06BFA

Part No.

8949-H288-06BFA

Desc.

Modular Jack Top Entry L:12.7mm W:15.4 H:16mm

8949-H3

Part No.

8949-H3

Desc.

Modular Jack Top Entry L:15mm W:15.2(8P) H:15.7mm

8949-H4D

Part No.

8949-H4D

Desc.

Modular Jack Top Entry SMD Type L:14mm W:15.5(8P) H:13.3mm
