Wire To Board Connectors 3.0mm to 6.35mm,Wires

Wire To Board Connectors 3.0mm to 6.35mm,Wires

Meet industry standard 3.96mm pitch wafer and housing
Natural insulator with option of UL 94v-0 and UL 94v-2
Locking feature to secured mating
Preloaded IDC available 18AWG to 26AWG with distinguished color code
Current rating 7A
Kinked leads with better retention on PCB
Surface Mount Right Angle and Vertical type available
Tape and Reel package available for automatic production

3.96mm 4771 4773 4776 4777 Series

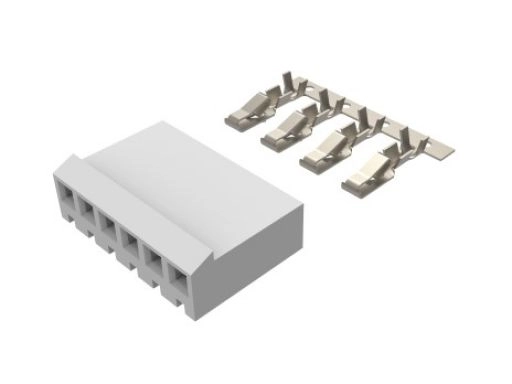

4771-xxHB and 4771-PIN-T-6K

Part No.

4771-xxHB and 4771-PIN-T-6K

Desc.

Housing 3.96mm Single 16.00mm profile, Terminal Tin 18AWG to 24AWG

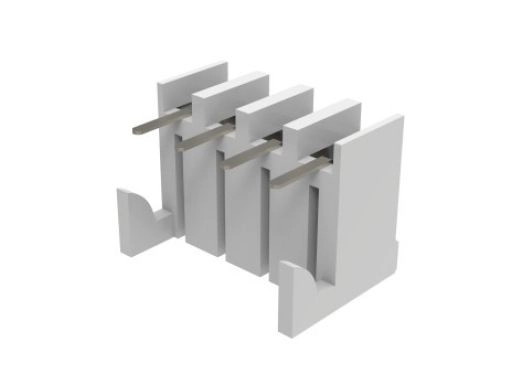

4771-xxTS(R)B

Part No.

4771-xxTS(R)B

Desc.

Wafer 3.96mm Single DIP STR/RA Tin 12.6mm profile Locking feature 2 to 16pin

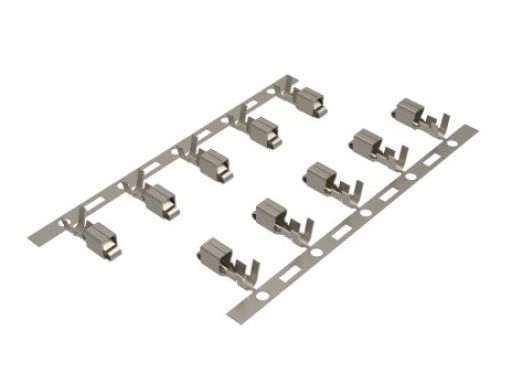

4771-PIN-T-6K

Part No.

4771-PIN-T-6K

Desc.

Terminal For 4771 Housing

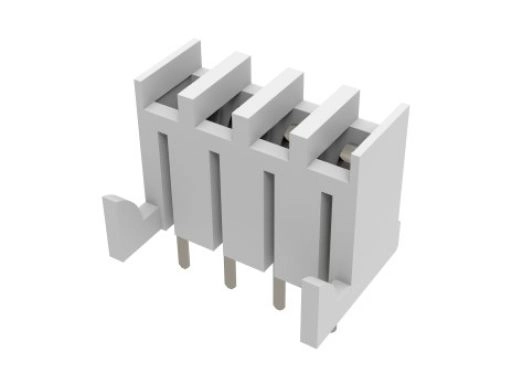

4773-xxTR(N)A

Part No.

4773-xxTR(N)A

Desc.

Wafer 3.96mm Fully shrouded Single DIP RA Locking feature option

4773-xxTBA

Part No.

4773-xxTBA

Desc.

Wafer 3.96mm Fully shrouded Single DIP STR Bottom entry Locking feature

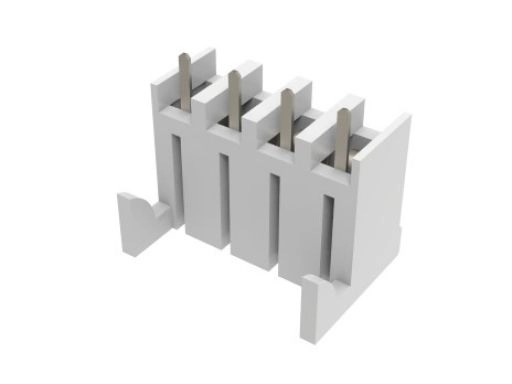

4773-xxTS(N)A

Part No.

4773-xxTS(N)A

Desc.

Wafer 3.96mm Fully shrouded Single DIP STR Locking feature

4776-PIN-T-4K

Part No.

4776-PIN-T-4K

Desc.

Terminal 3.96mm Tin 18AWG to 22 AWG

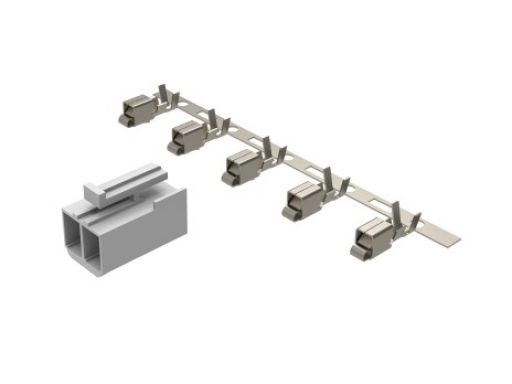

4776-xxHB and 4776-PIN-T-4K

Part No.

4776-xxHB and 4776-PIN-T-4K

Desc.

Housing 3.96mm Single 13.5mm profile 2 to 14pin, Terminal Tin 18AWG to 22 AWG

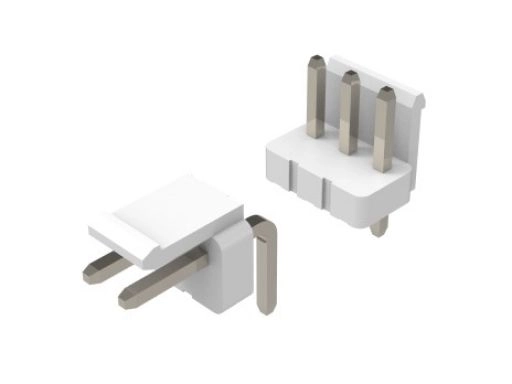

4776-xxTS(R)B

Part No.

4776-xxTS(R)B

Desc.

Wafer 3.96mm Single DIP STR/RA Tin 9.60mm profile Locking feature 2 to 14pin

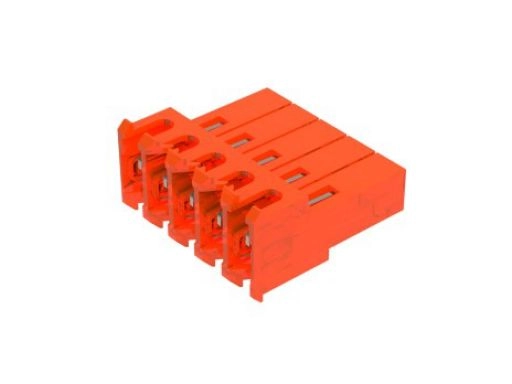

4777-AxxHE1(2)1(2)CRB

Part No.

4777-AxxHE1(2)1(2)CRB

Desc.

IDC 3.96mm Close end Single Locking ramp Polarizing tab 18AWG to 26AWG

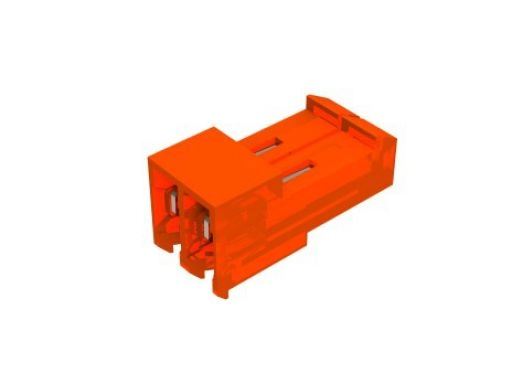

4777-AxxHT1(2)1(2)CRB

Part No.

4777-AxxHT1(2)1(2)CRB

Desc.

IDC 3.96mm Feed through Single Locking ramp Polarizing tab 18AWG to 26AWG
