High Power BTB Connectors 15AMP to 60AMP
read more

High Power BTB Connectors 15AMP to 60AMP

High Flow Power HFP®  Low Profile-60A
Mating High = 6.91 (<7mm)
Length x Width = 19x13 (<20mm)
BTB vertical

60Amp High Flow Power HFP® 9113-F+9114-F Series

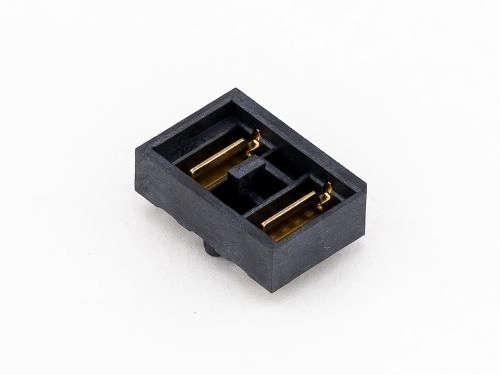

9113-F12CB30P

Part No.

9113-F12CB30P

Desc.

F Type 2 Power Male Straight

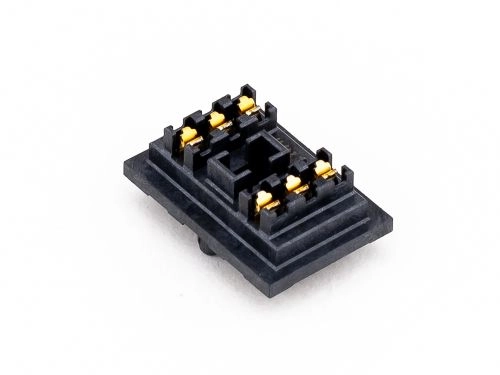

9114-F12CB30P

Part No.

9114-F12CB30P

Desc.

F Type 2 Power Female Straight

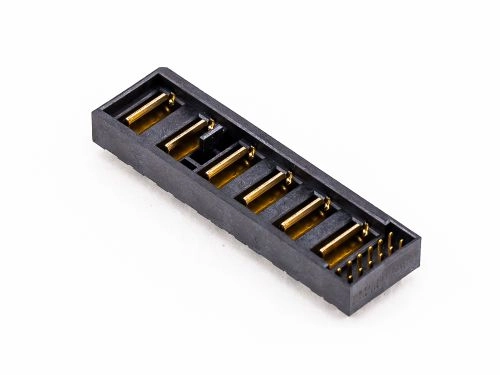

9113-F16S12CB30P

Part No.

9113-F16S12CB30P

Desc.

F Type 6 Power 12 Signal Male Straight

9114-F16S12CB30P

Part No.

9114-F16S12CB30P

Desc.

F Type 6 Power 12 Signal Female Straight
