High Speed Card Edge
read more

High Speed Card Edge

Mini PCI Expess Card Connector, 0.8mm, 52 Pin
* 4mm, 5.2mm & 5.6mm Stack Height
* With locking posts and hold down solder pad for stability.
* Surface Mount and Right Angle entry
* Accept PCIe Mini Card.

Mini PCI Express 8402-A Series

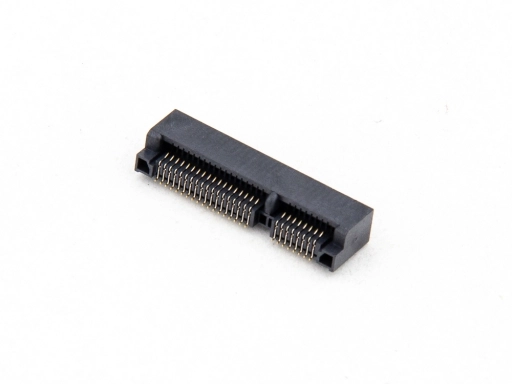

8402-A52G00A1T

Part No.

8402-A52G00A1T

Desc.

Mini PCI Express (PCIe) Connector 4.0mm

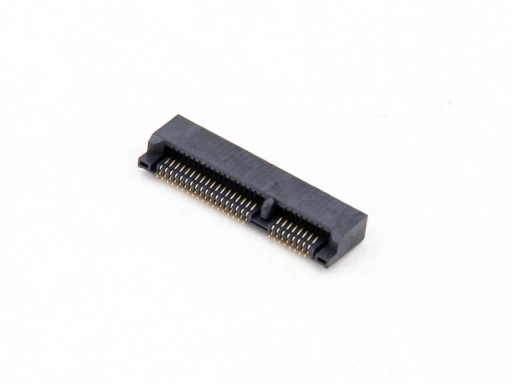

8402-A52G00A2T

Part No.

8402-A52G00A2T

Desc.

Mini PCI Express (PCIe) Connector 5.2mm

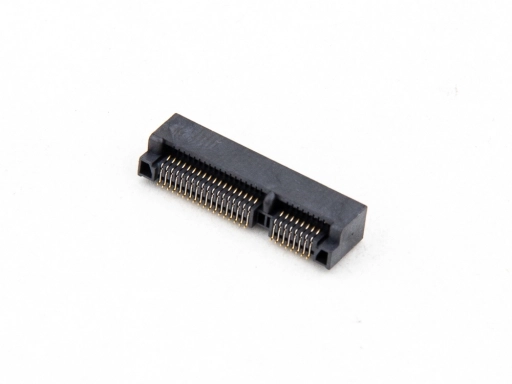

8402-A52G00A3T

Part No.

8402-A52G00A3T

Desc.

Mini PCI Express (PCIe) Connector 5.6mm
