Automotive Connectors

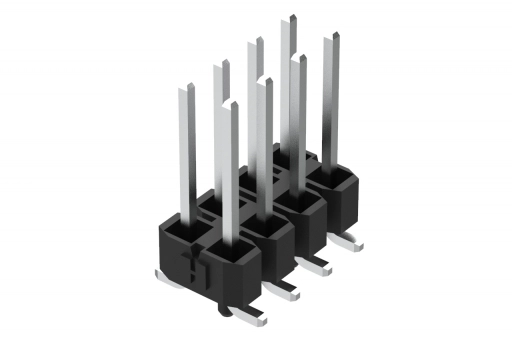

Automotive Header
  • Pitch 3.0x3.0mm
  • SMD Type
  • With or without post
  • Comply with USCAR 2 standards

Automotive Headers 5090 Series

5090-2XxxTDx-xT-P

Part No.

5090-2XxxTDx-xT-P

Desc.

Automotive Header SMD Type
