1.27mm Board To Board SMC Connectors

BTB Connection vs Cable Connection

1.27mm Board to Board SMC Connector Introduction

Oupiin has developed a range of SMT-type connectors - for space saving, stacking purposes.

It features high density dual spring contacts and high temperature insulation to help maximize

reliability mating. In addition, its high-performance co-planarity helps users assemble in all

common applications.

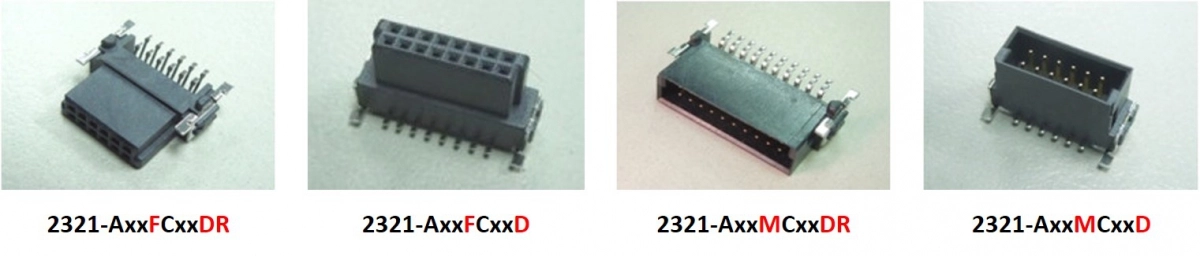

     *2321-AxxFCxxDR: Horizontal Female
     *2321-AxxFCxxD: Vertical Female
     *2321-AxxMCxxDR: Horizontal Male
     *2321-AxxMCxxD: Vertical Male
     Types of pin counts: 12, 16, 20, 26, 32, 40, 50, 68, 80
     Various gold plating optional for different applications

Applicable Types

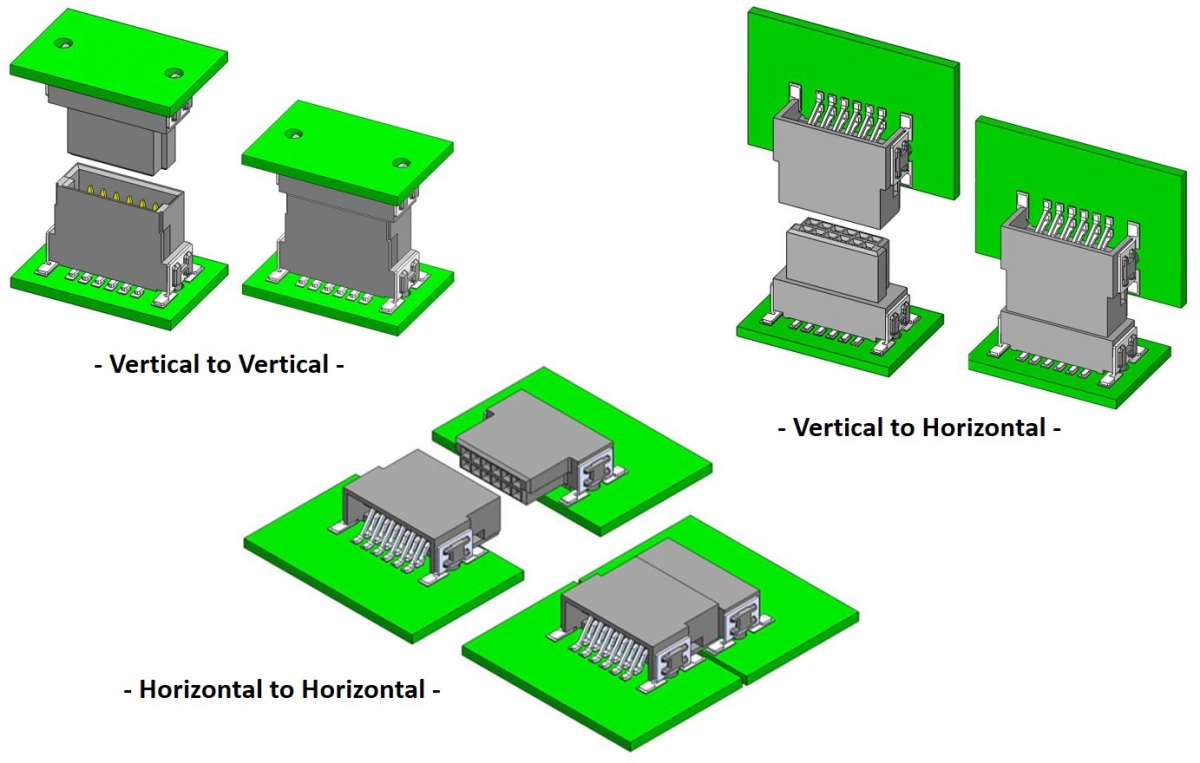

This series offers the following three ways of BTB connection.

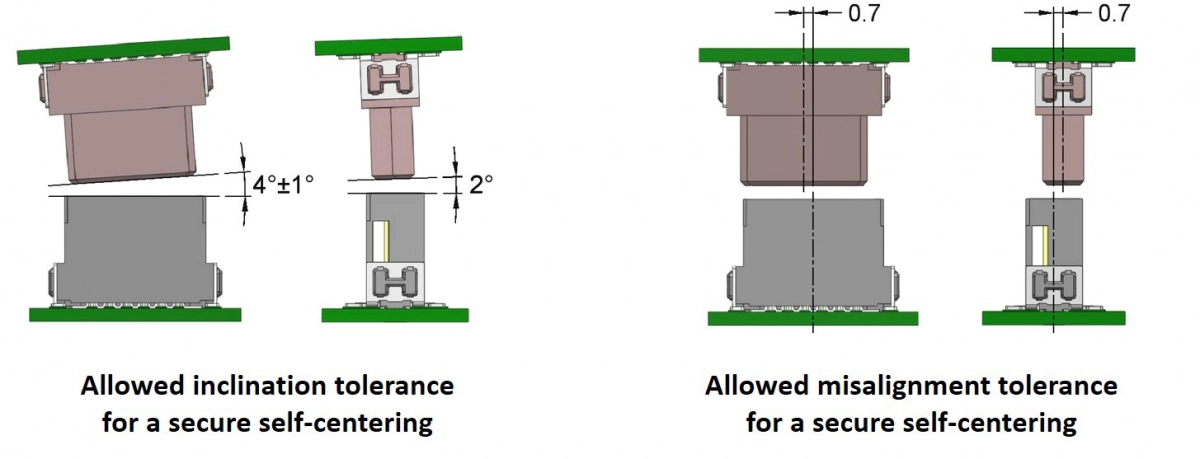

Tolerance range for inclination or misalignment

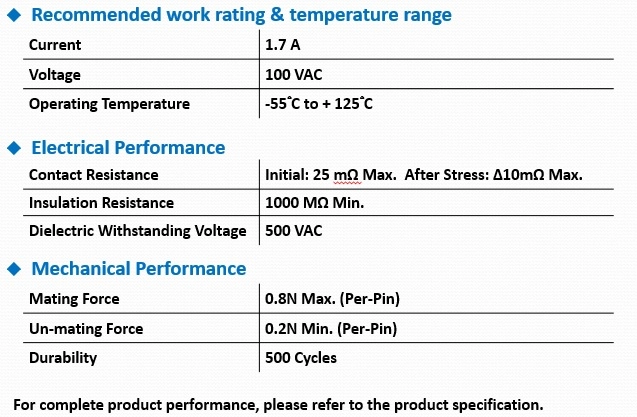

Product Specification

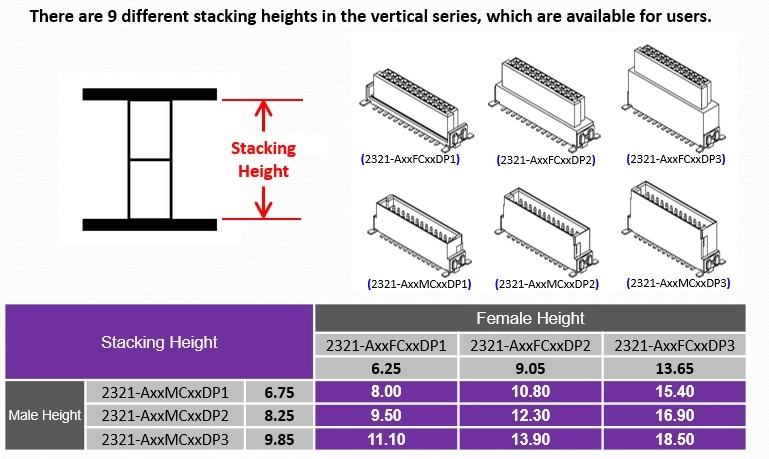

Stacking Height

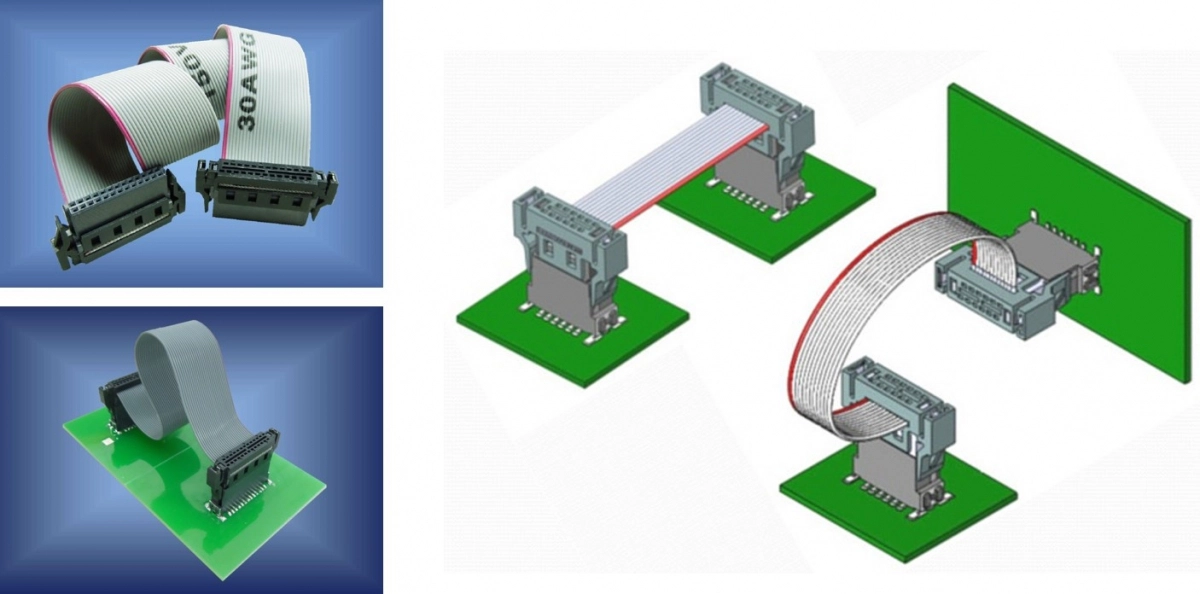

1.27mm IDC Cable SMC Connector Assembly Introduction

Oupiin following the SMC board-to-board series, the line-to-board SMC series has developed to give users a wider range of adaptations.

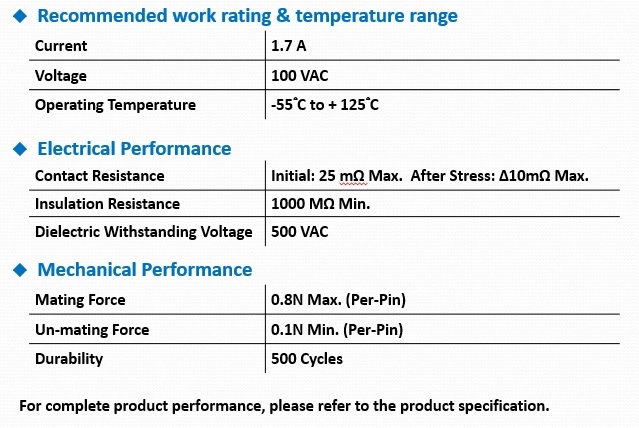

Product Specification – Cable Connector

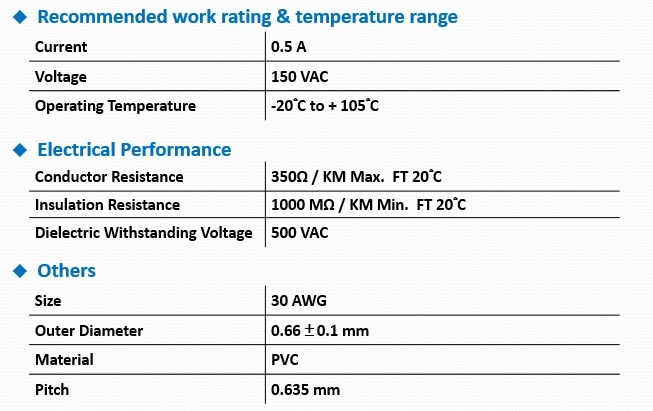

Product Specification – IDC Flat Cable

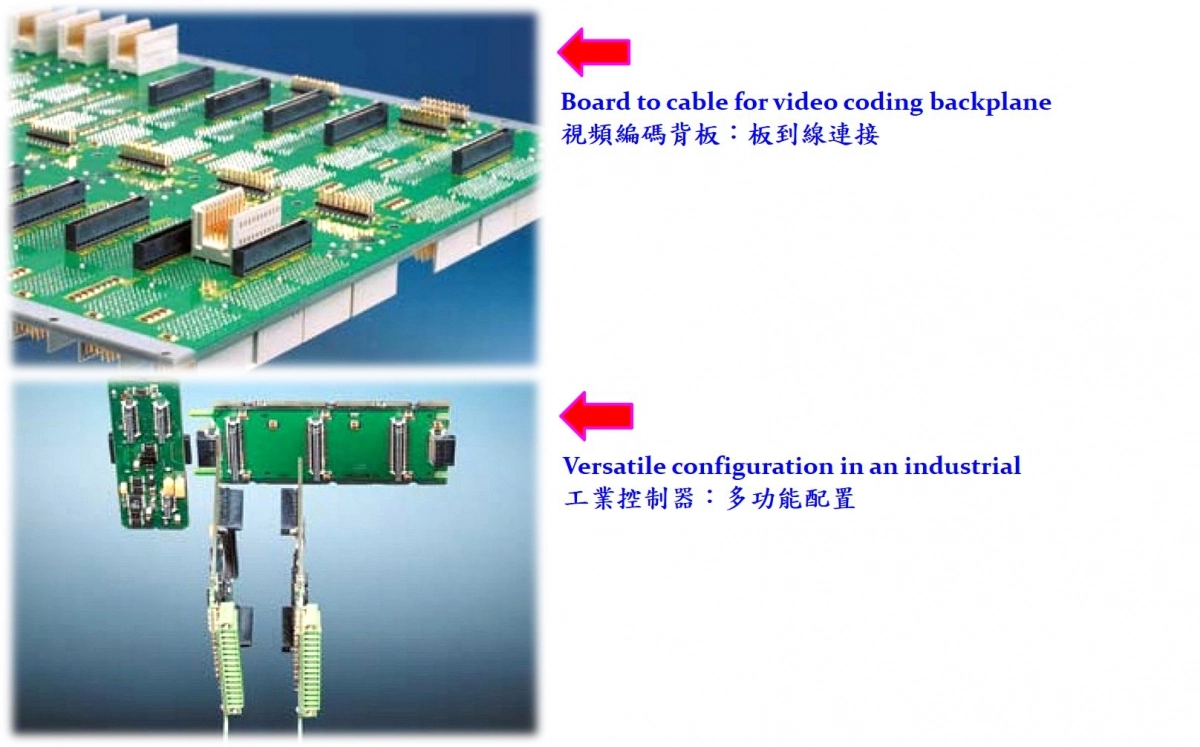

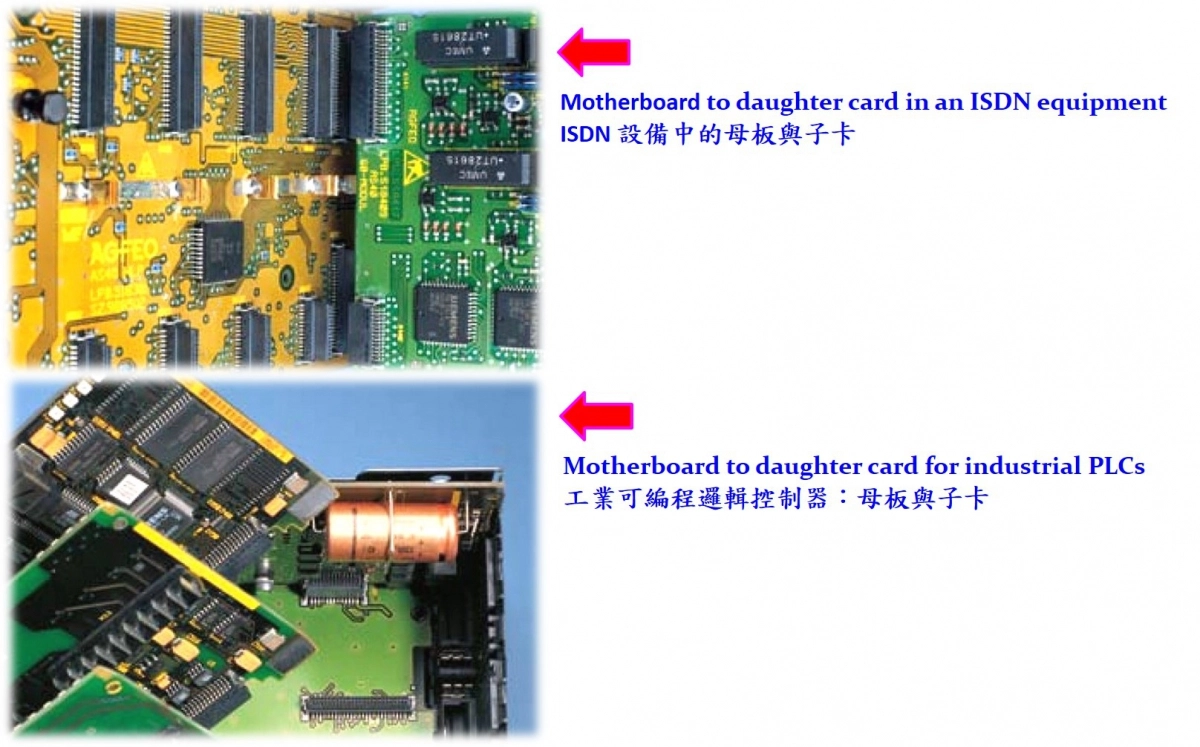

Application

Thank you
