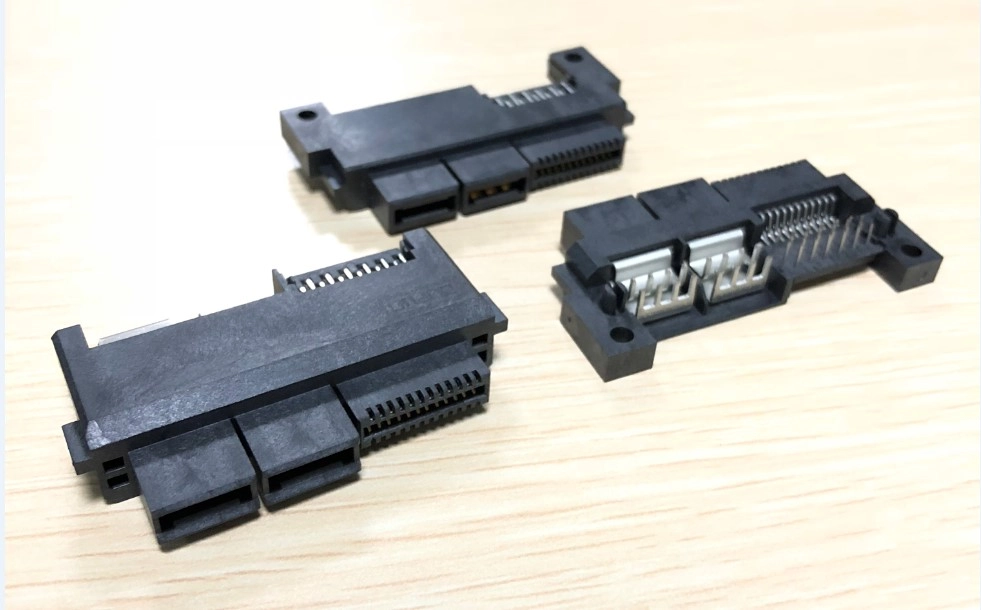

Low Profile Hybrid Power Connectors

Low Profile Hybrid Power Connectors

This is not a definitive list of applications for this product. It represents some of the more common uses.

The advantages of the product are as follows

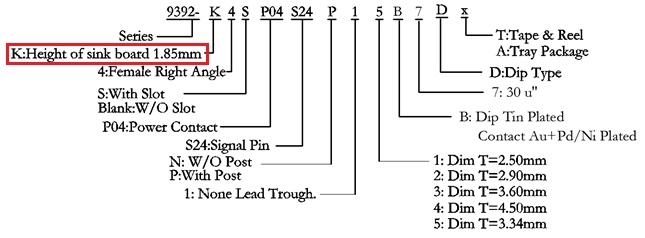

1.1 The product can be matched with the OUPIIN standard LPH plug or the industry standard 1.6mm printed circuit gold finger side

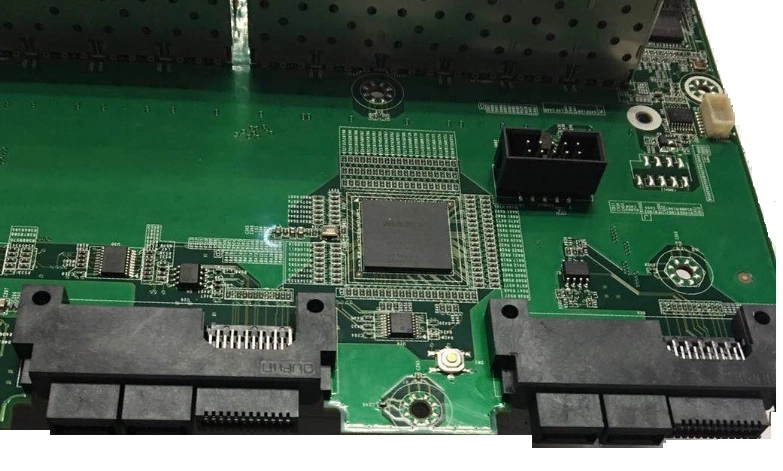

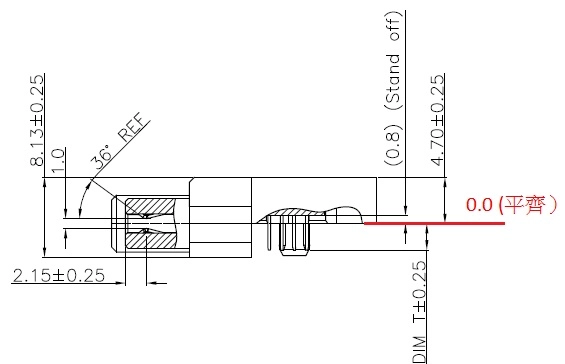

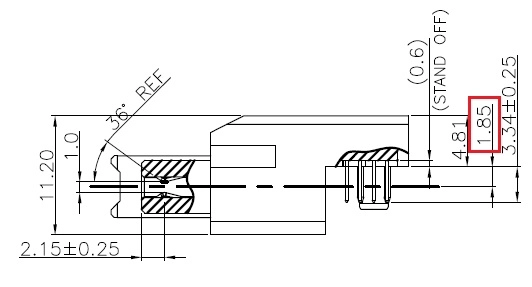

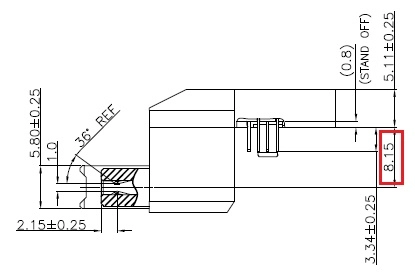

1.2 The product is submergence of the PCB, which can significantly reduce the product’s upper and lower space in the shell.

1.3 Current interruption rating,in line with hot pluggable requirements.

1.4 The contact point of signal and power supply is strong and durable, which can effectively reduce the possibility of being touched or damaged.

1.5 Each shell compartment (top and bottom end) is equipped with two independent power blades,which provide a power supply and return circuit in one
      compartment, and each power rack provides the total current of 60A.

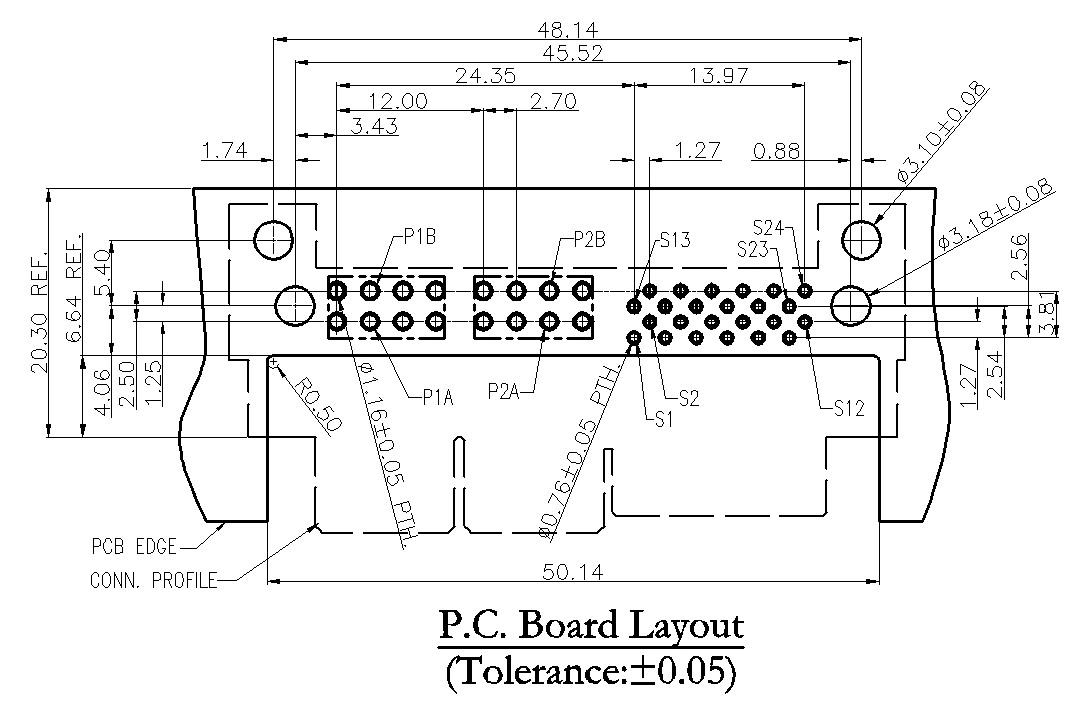

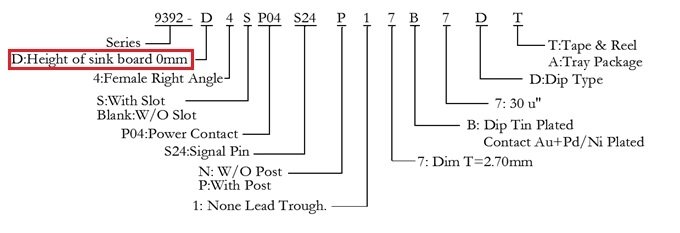

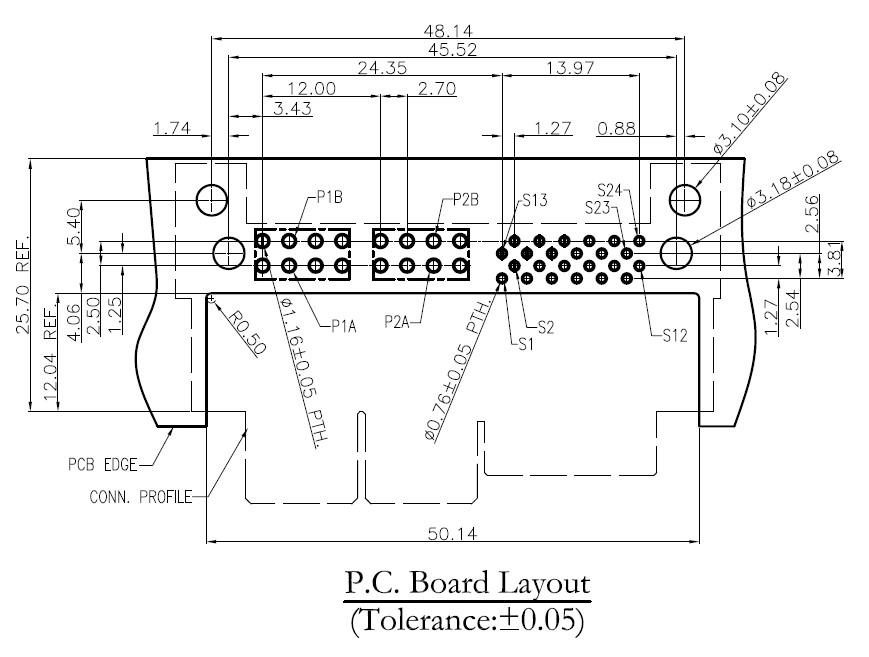

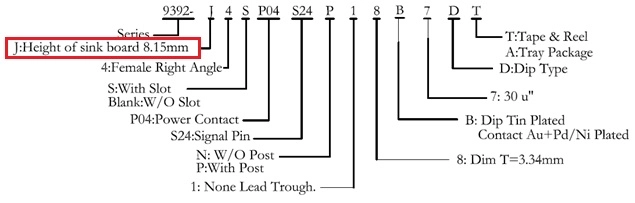

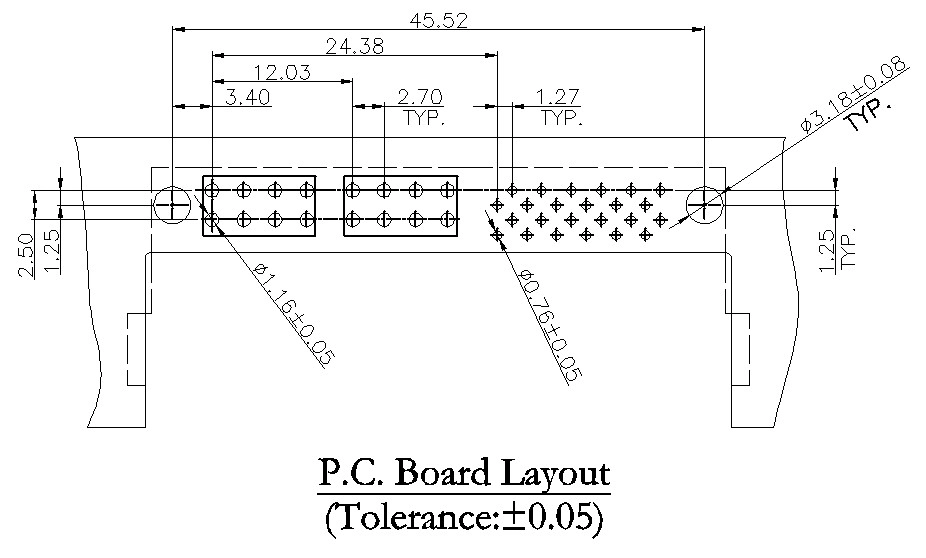

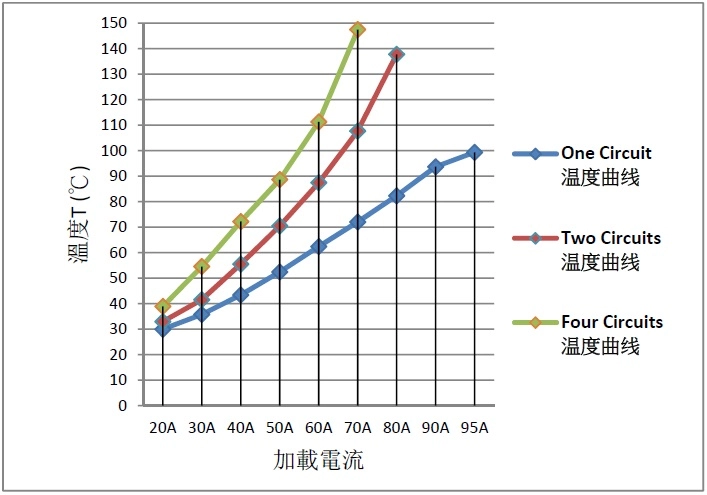

Current Rating Test

The connector product is a hybrid, high current power supply and signal connector system, which can effectively make up for the shortcomings of the traditional connector. Because of the design of power supply blades parallel to the circuit board, it’s very low, allowing larger system air flow to pass. Compared with the traditional connector with the same rated current, it can reduce most of the occupied space.

As a new generation of power interconnect products, each shell has two independent power supply blades, which can be inserted in the coplanar direction. Low Profile Hybrid Power Receptacle can be inserted in the traditional two piece connector system, or it can be used as a single piece socket for side panel / busbar application.
