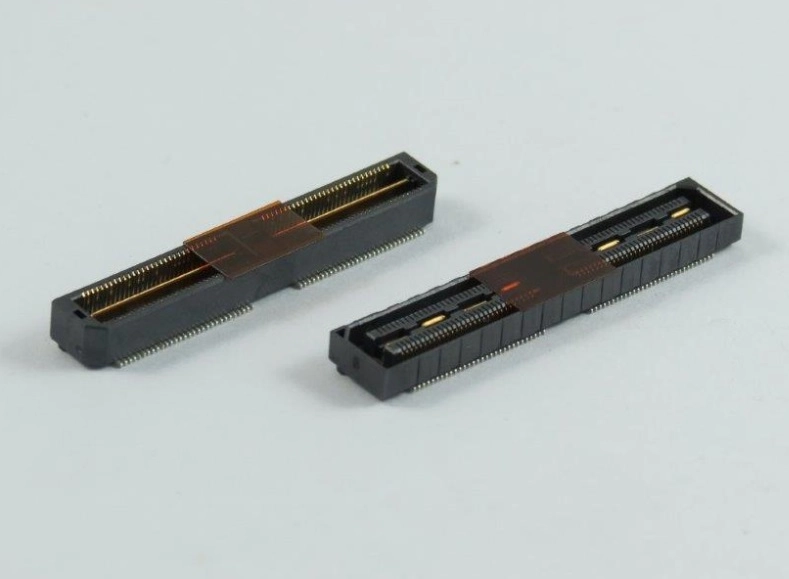

High speed board to board connector
2022-02-11

2384-A Series PAM4 28+Gbps

產品運用與優點

產品運用於高頻高速訊號傳輸系統設施
例如: 服務器，移動5G網路等
這不是该产品的应用程序的最终列表。它代表了一些比较常见的用途。

產品優點有如下几點

1.1性能：高达9.5 GHz / 19 Gbps
1.2针对100欧姆系统进行了优化
1.3整体接地/电源共面
1.4堆叠高度：5.00-25.00毫米
1.5接觸端點: 30-90 對
1.6接地端子可以通流25A/Pin

SI性能

本测试报告描述了OUPIIN High Speed Board to Board 连接器的SI测试环境及测试结果，
主要包括连接器的阻抗、插损与回损、近端串扰、远端串扰等电气性能指标。

测试环境
        1. 测试仪器(Test Instrument)TDR：ROHDE&SCHWARZ ZVAB-K2 Time domain(software license)

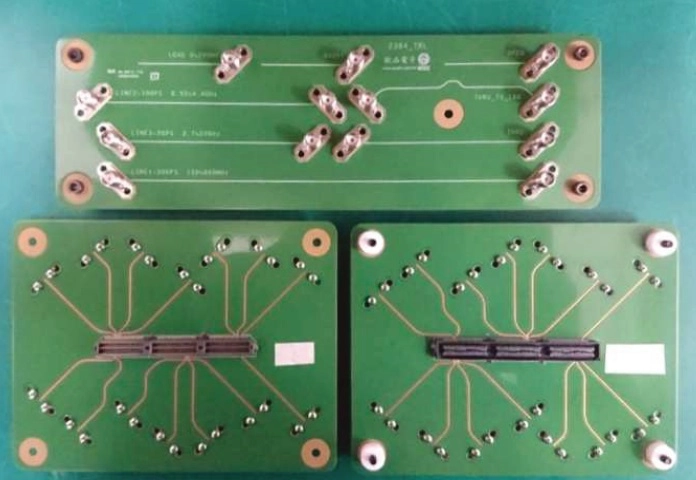

           Test Board：2384-A connector test board
            VNA：ROHDE&SCHWARZ ZVA50 (4-Port) Vector Network Analyzer 10MHz~50GHz

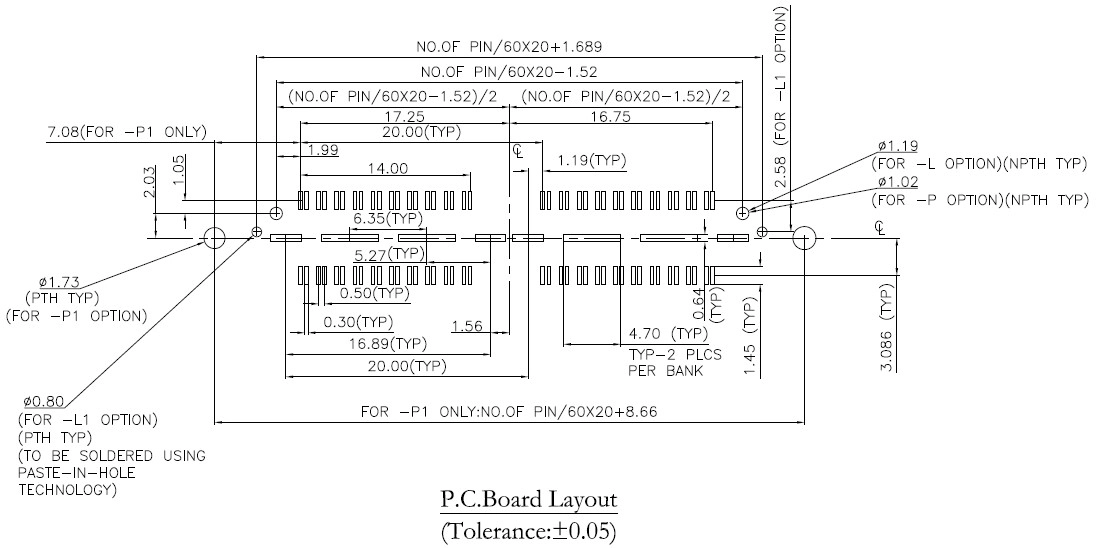

        2.测试系统描述(Test board description)
           Use Panasonic Megtron-6 material

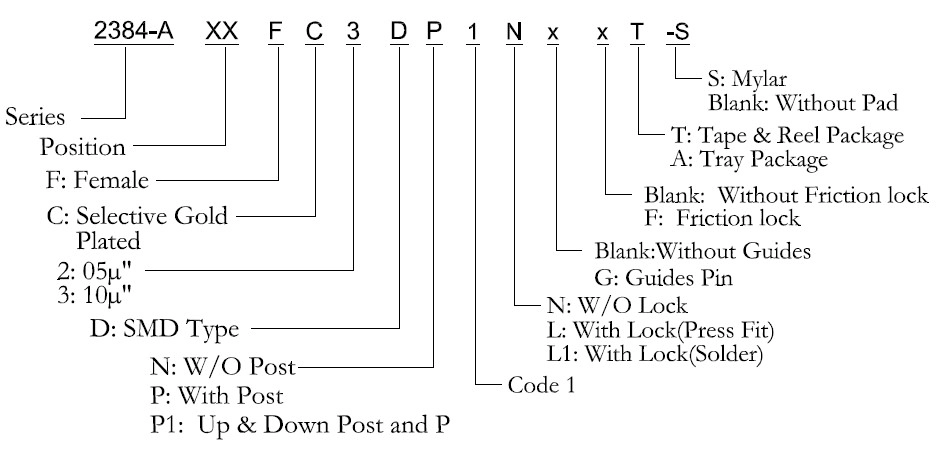

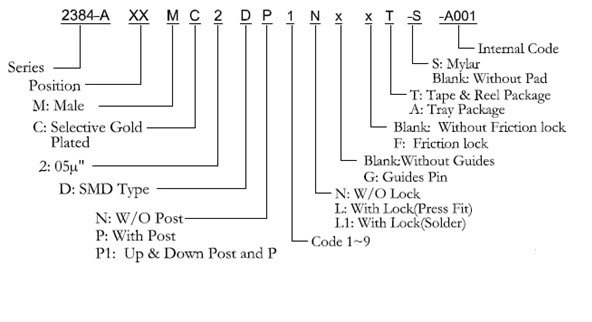

High Speed Board to Board (P/N)

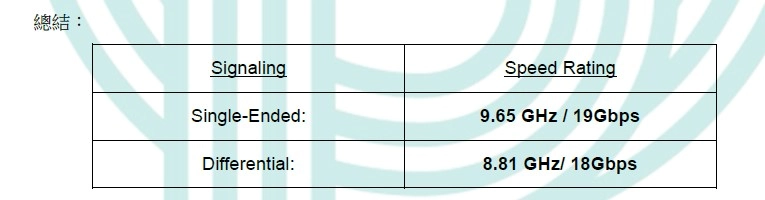

總結
一款扣板型的高速BTB连接器，中间地针可以传输25A的电流，此款连接器可以有多种不同的叠加高度，
目前有5至25mm的多重选择，可以满足客户不同的需求.
