HOME最新消息SFP /SFP Plus (SFF-8433)

SFP /SFP Plus (SFF-8433)
2017-06-02

101

產品運用與優點

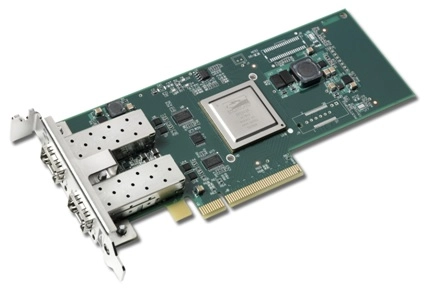

產品適用於儲存&網路設備及電信市場的交換機、路由器、伺服器、集線器&網路卡。能高速傳輸數據資料，有效改善生產及整體成本

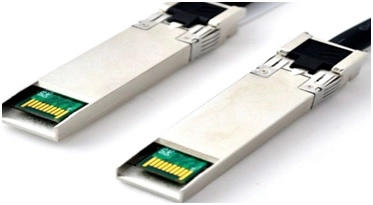

SFP Cage+ Connector 與光模快對接傳輸10Gbps信號.

102 103

產品優點有如下几點

1.1 支持更高的數據傳輸速率，優於傳統的連接器 (例RJ-45 )

1.2 增加光纖傳輸能力

1.3 在設備上提供客戶更多選擇，能符合不同客戶層之需求…

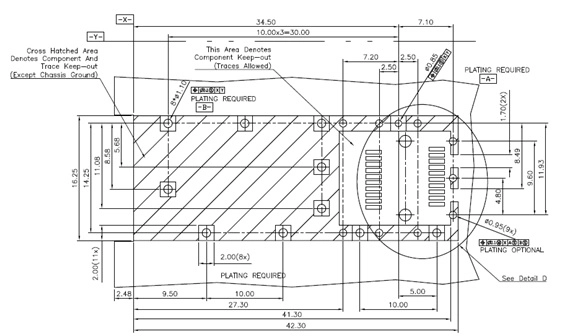

封裝PCBLayout(依據SFF-8433規範)

104

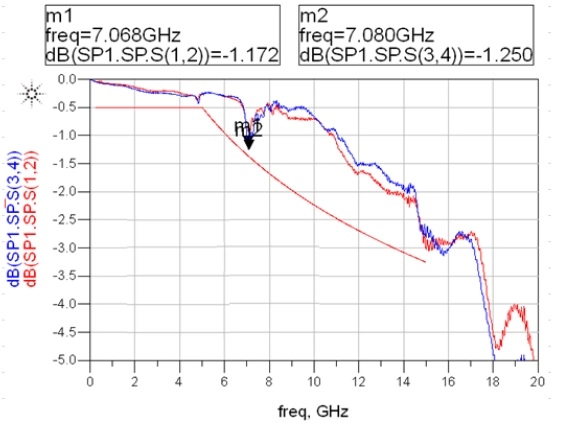

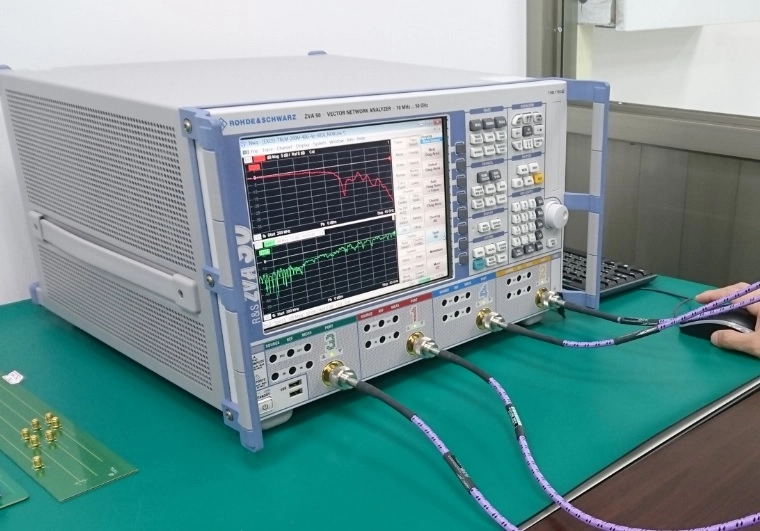

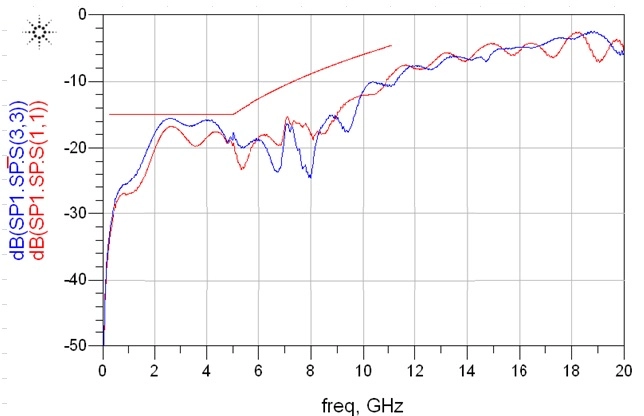

SI性能

105

106 107

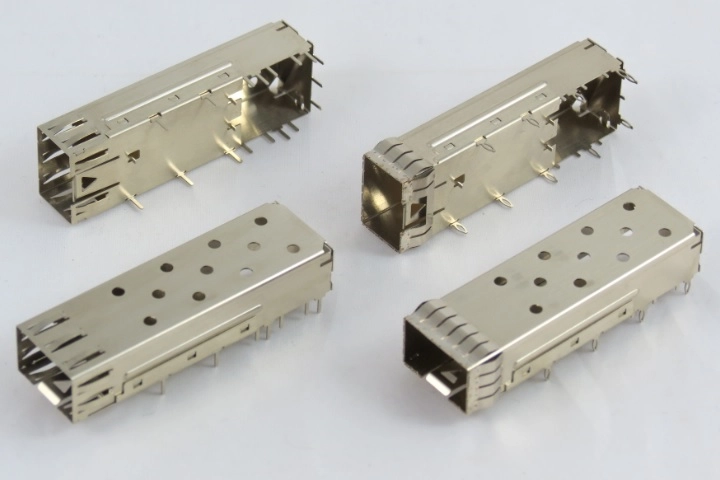

High speed I/O Connector and SFP /SFP Plus (P/N)

108

109

110

101 111

Material:Cu-Ni Alloy or SUS

Mounting options :
1. Through hole
2. Press fit

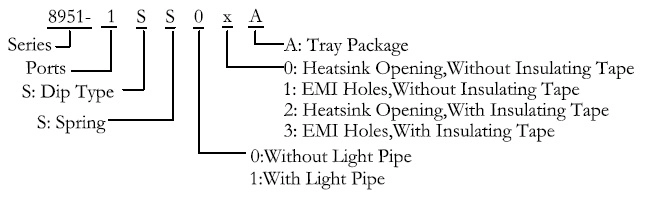

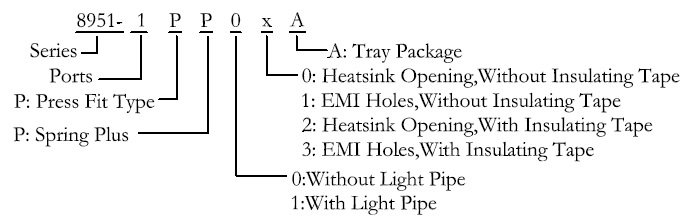

Heatsink Type:
      1. Heatsink Opening,Without Insulating Tape
      2. EMI Holes,Without Insulating Tape
      3. Heatsink Opening,With Insulating Tape
      4. EMI Holes,With Insulating Tape

Cage latch strength/module retention: 90N Min.

總結:
1. 支持10Gb/s傳輸速率，並向下相容
2. SFP+連接器總共有20pin端子
3. SFP+銅殼(屏蔽罩)接口區分與SFP相同
4. 需增加彈片或導電墊圈來降低EMI
